Perforated Grate & Channel Body Kit * Center Outlet

Includes:

  • Channel Body Kit
  • Grate Assembly – Closed Grate

L= The Closed Grate Size in inches
L1 = The Channel Body Size in inches











SELECT A SIZE    L = Inches

SKU: N/A Category:

Description

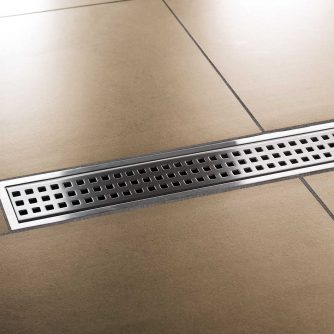

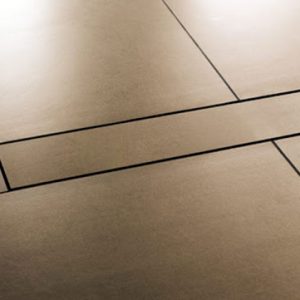

Schluter®-KERDI-LINE is a low profile linear floor drain specifically designed for bonded waterproofing assemblies. KERDI-LINE can be installed adjacent to walls or at intermediate locations. The floor can be sloped on a single plane to KERDI-LINE, which enables the use of largeformat tiles and creates interesting design opportunities.

KERDI-LINE consists of a formed stainless steel channel body and grate assembly or covering support to which tile is applied. The channel body features a standard 2″ (50 mm) no-hub outlet and is attached to the pipe using an appropriate mechanical no-hub coupling. The simple connection to standard drain outlets makes KERDI-LINE suitable for new construction and renovation. KERDI-LINE is available with both center and off-set outlets. The offset outlet is located 8″ (20.3 cm) from the edge of the channel body and provides flexibility when obstacles (e.g., floor joists) are encountered during installation. KERDI-LINE includes a corresponding polystyrene foam channel support to set the drain elevation to the corresponding KERDI-SHOWER-LT/-LTS shower trays. The perimeter of the channel body consists of a bonding flange laminated with a collar made of KERDI. It ensures a simple and secure connection to the bonded waterproofing assembly, both in the floor area and on adjacent walls. KERDI-LINE is available in channel lengths from 20″ to 72″ (50 cm to 180 cm) in 4″ (10 cm) increments. The bonding flange extends approximately 1″ (2.5 cm) beyond the channel on all sides.

Additional information

DRAIN SIZE

20" Drain (L =19-11/16 L1=21-11/16), 24" Drain – (L =23-5/8 L1=25-5/8), 28" Drain – (L =27-9/16 L1=29-9/16), 32" Drain – (L =31-1/2 L1=33-1/2), 36" Drain- (L =35-7/16 L1=37-7/16), 40" Drain – (L =39-3/8 L1=41-3/8), 44" Drain – (L =43-5/16 L1=45-5/16), 48" Drain – (L =47-1/4 L1=49-1/4), 52" Drain – (L =51-3/16 L1=53-3/16), 56" Drain – (L =55-1/8 L1=57-1/8), 60" Drain – (L =59-1/16 L1=61-1/16), 63" Drain – (L =62-15/16 L1=64-15/16), 67" Drain – (L =66-7/8 L1=68-7/8), 71" Drain – (L =70-13/16 L1=72-13/16)
